Recon MGT

Challenge 15. What is the domain of the users of the wifi-regional network

In MGT networks misconfigured users can send their Identity (username) in clear text before performing the TLS tunnel, so with “airodump-ng” we can passively obtain this information. For this we simply use “airodump-ng” on the correct channel and wait for the clients to connect.

Put card into monitor mode

sudo airmon-ng

Start a network capture

sudo airodump-ng --band abg --manufacturer --wps wlan0mon

 BSSID              PWR  Beacons    #Data, #/s  CH   MB   ENC CIPHER  AUTH WPS    ESSID                 MANUFACTURER

 F0:9F:C2:71:22:16  -25        4        0    0  44   54e  WPA2 CCMP   MGT  0.0    wifi-regional         Ubiquiti Netw



now I have the channel, filtering for that and the bssid

sudo airodump-ng --band abg --manufacturer --wps wlan0mon --bssid F0:9F:C2:71:22:16 -c44 -w scan

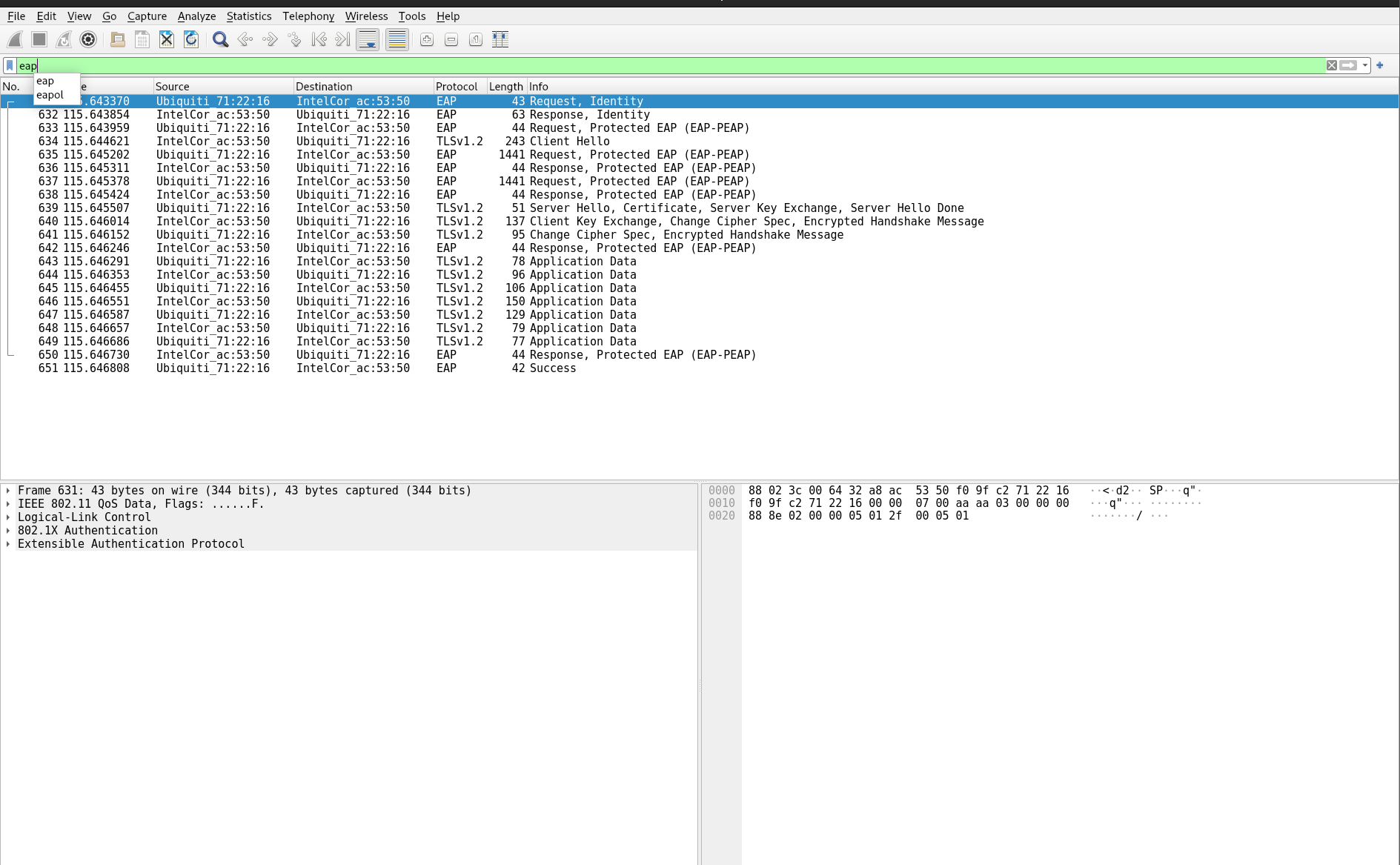

Then I want to open that pcap in wireshark and filter by eap

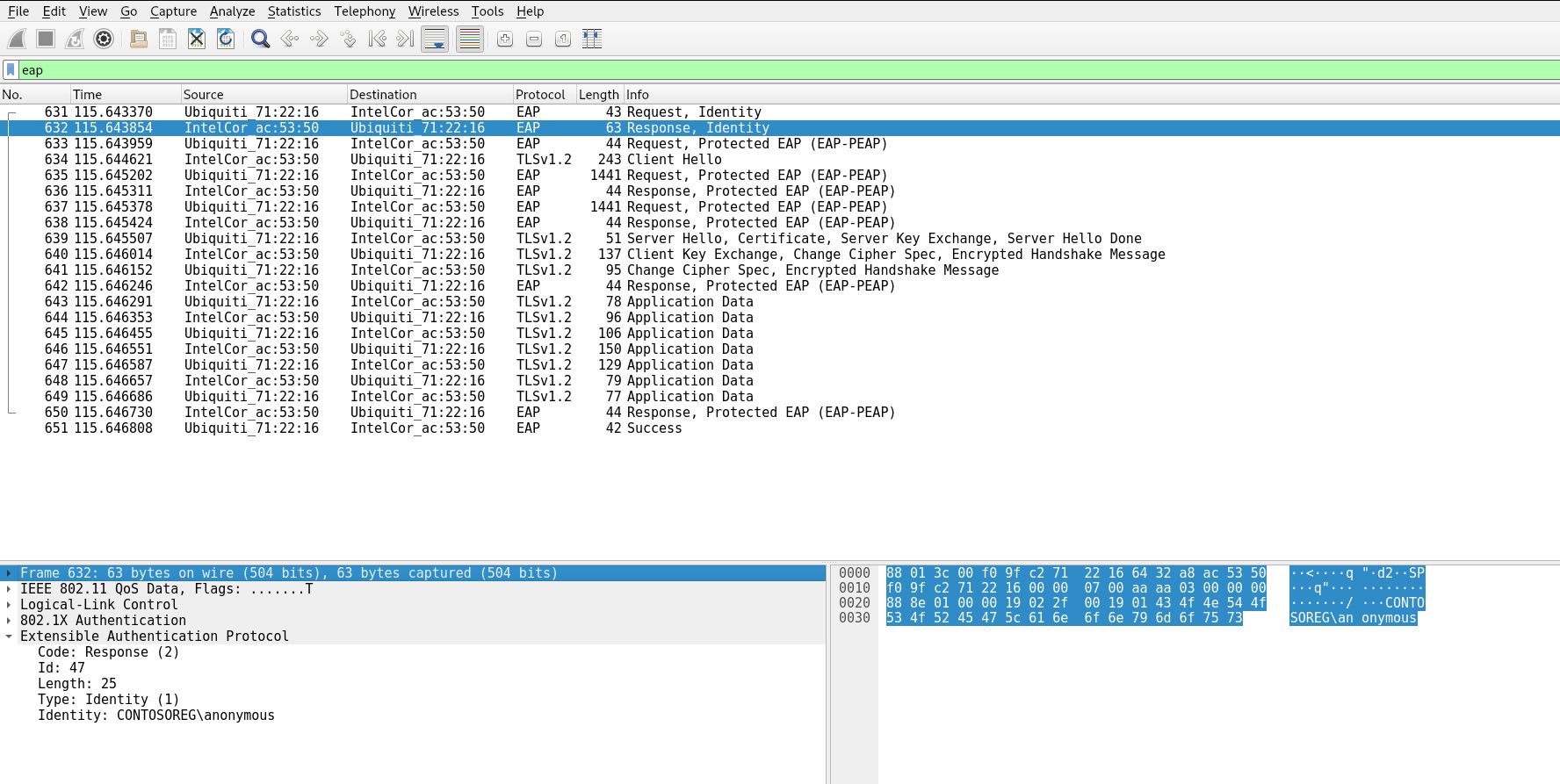

Expanding the extensible authentication protocol tab and clicking through the packets that say response identity I can find the domain of the users

/CONTOSOREG\anonymous

Contosoreg

Challenge 16. What is the email address of the servers certificate?

Going through the wireshark capture from the above question the obvious place to look for the email address of the server certificate is the packet with the word certificate in the INFO column.

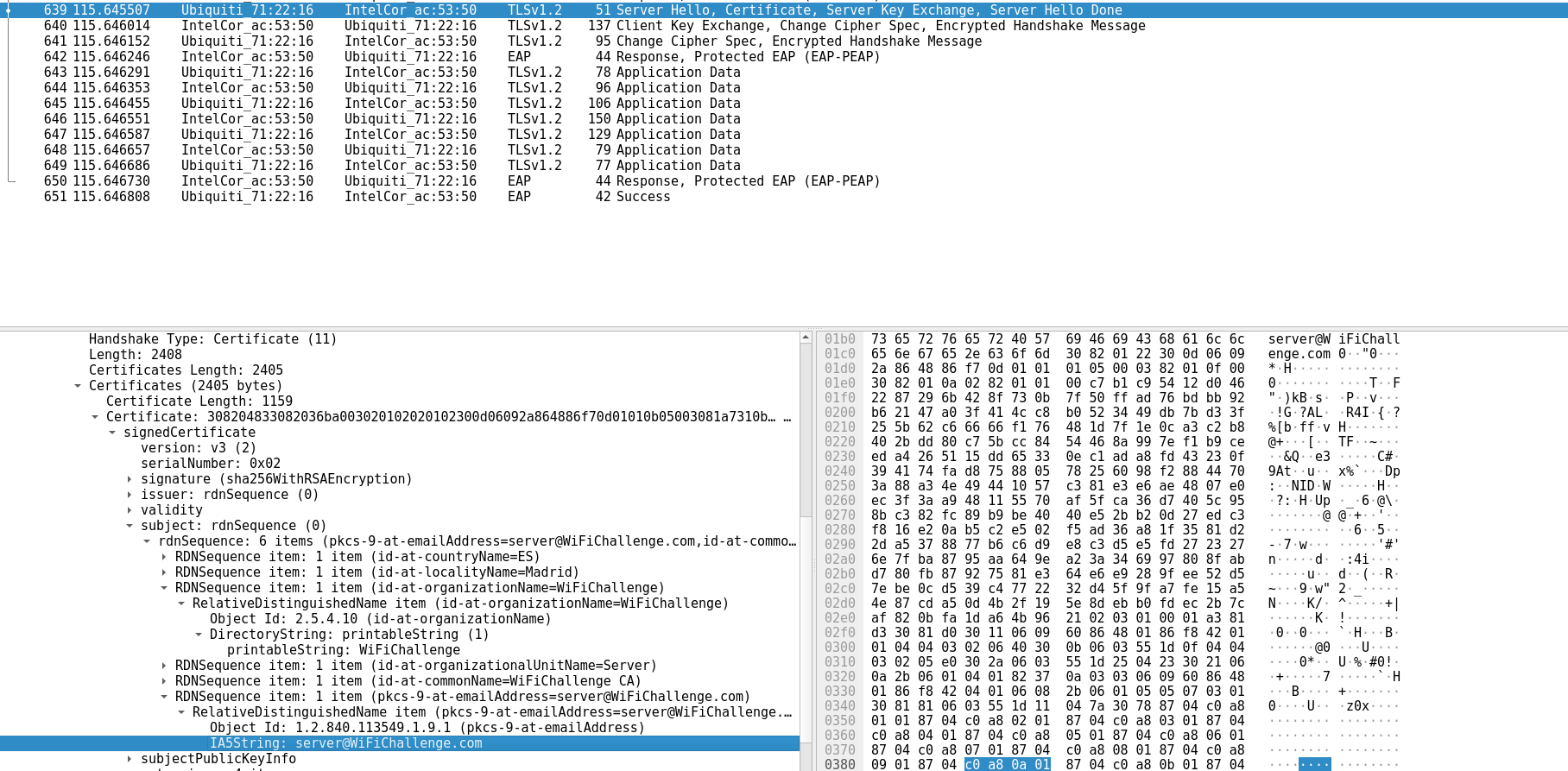

See screenshot

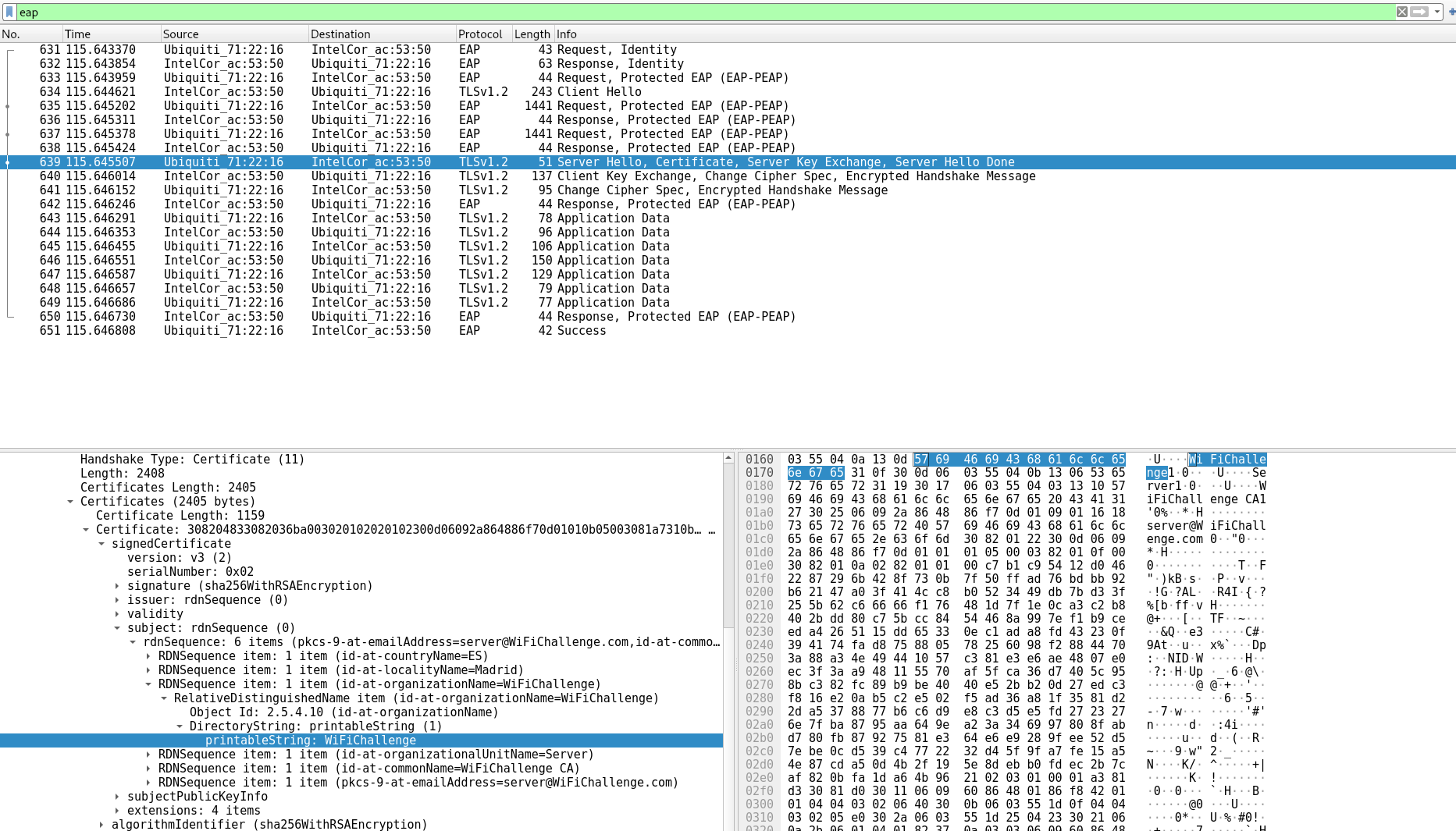

Expanding the RDN sequence item tab

server@WiFiChallenge.com

Challenge 17. What is the EAP method supported by the wifi-global AP

sudo airodump-ng --band abg --manufacturer --wps wlan0mon

BSSID              PWR  Beacons    #Data, #/s  CH   MB   ENC CIPHER  AUTH WPS           ESSID                 MANUFACTURER

 F0:9F:C2:71:22:17  -25        6        6    0  44   54e  WPA2 CCMP   MGT  0.0           wifi-global           Ubiquiti Networks Inc.


Using wifidb to enumerate access points

python3 wifi_db.py -d wifichallenge.SQLITE <directory you output scans in>

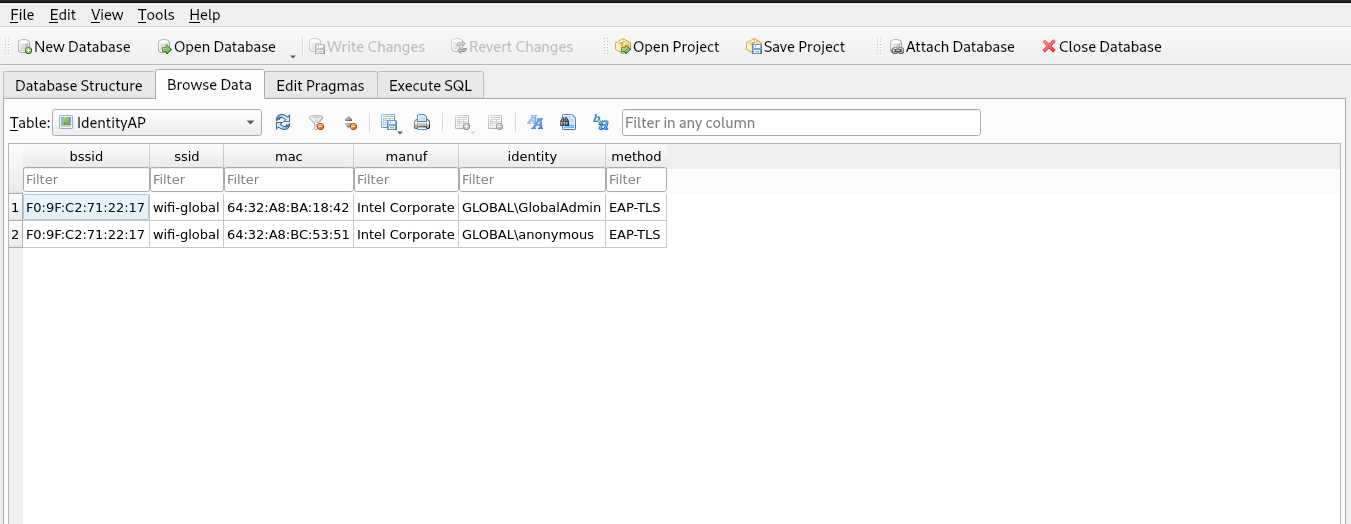

open the db

sqlitebrowser wifichallenge.SQLITE

browse data —> identity AP

in the identity tab I get two usernames I can use with eapbuster to determine the eap method

GLOBAL\anonymous
GLOBAL\GlobalAdmin

run eap buster this can produce false positives, be sure to run a airmon-ng check kill before hand

sudo airmon-ng check kill
root@WiFiChallengeLab:~/tools/EAP_buster# bash ./EAP_buster.sh wifi-global 'GLOBAL\GlobalAdmin' wlan1

eventually it will tell us EAP-TLS is the method
